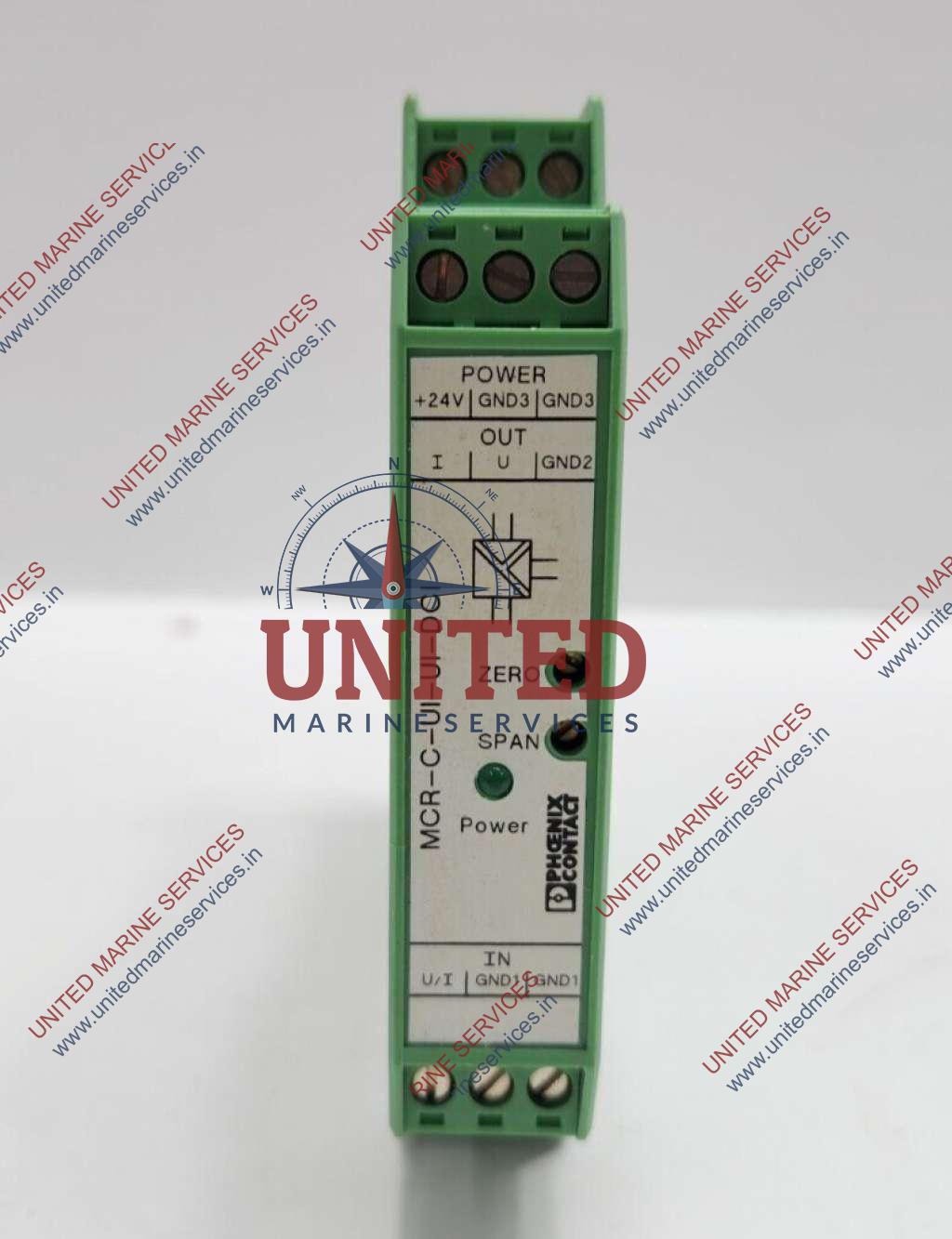

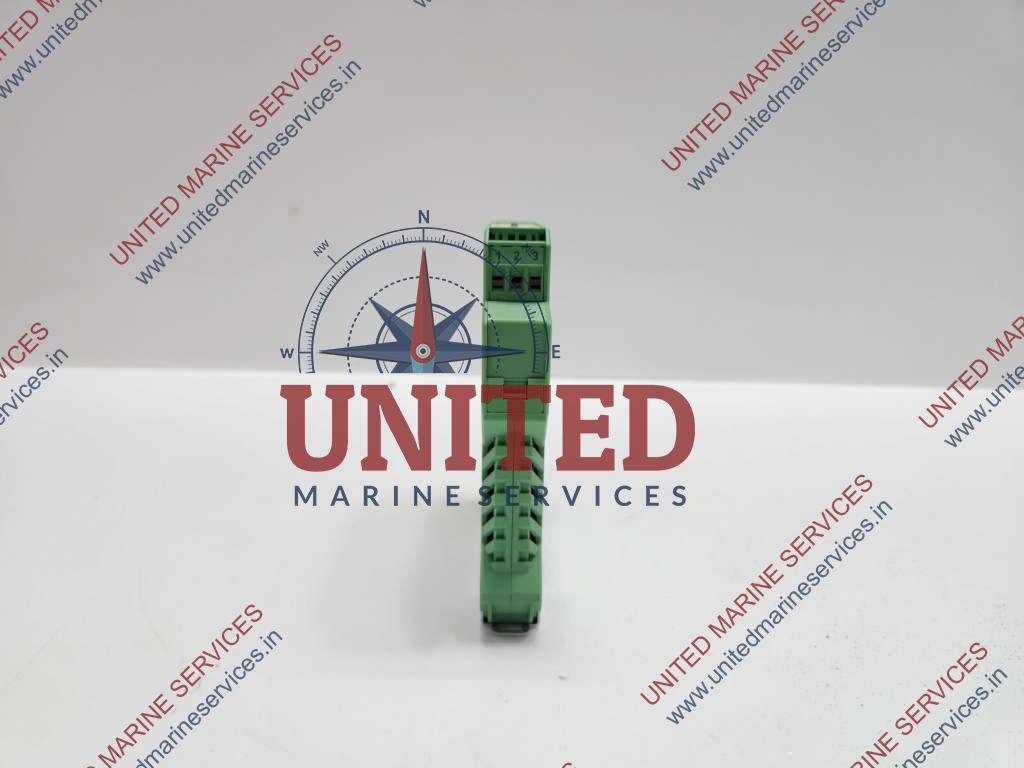

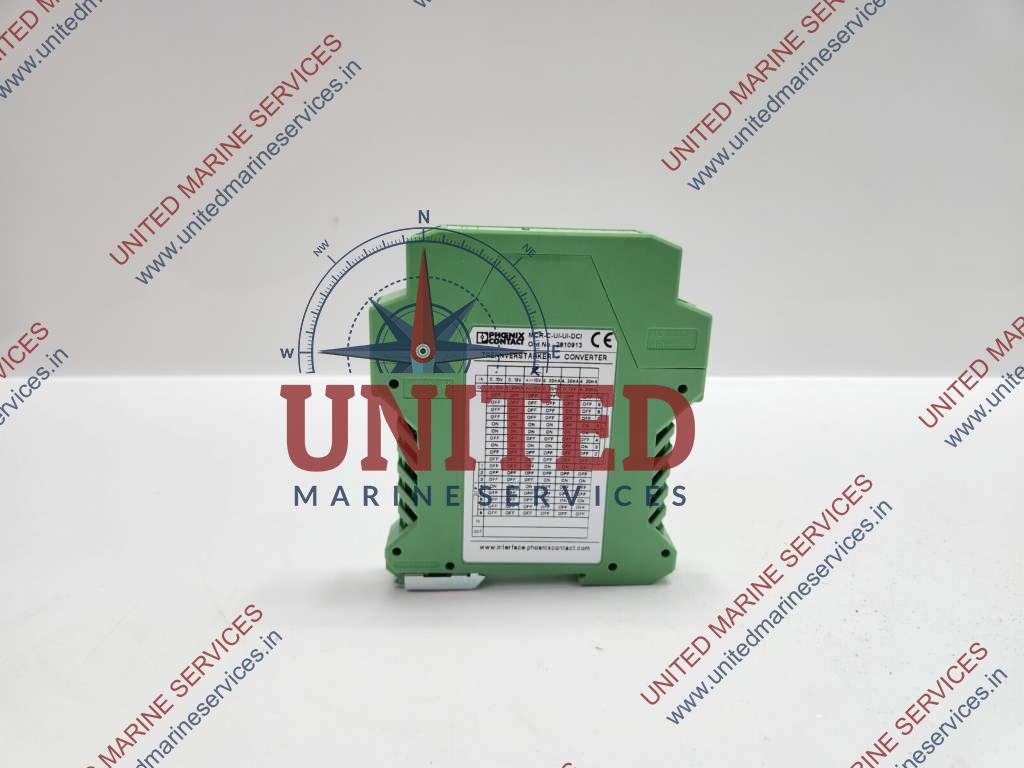

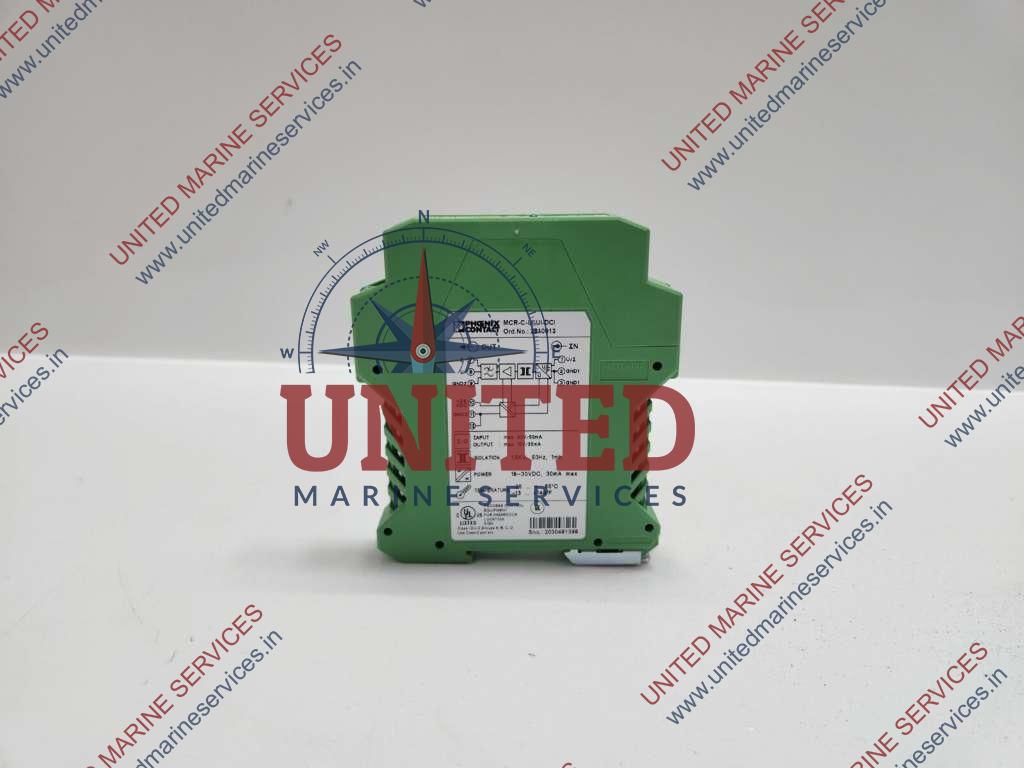

PHOENIX CONTACT MCR-C-UI-UI-DCI SIGNAL CONDITIONER 2810913

PHOENIX CONTACT MCR-C-UI-UI-DCI SIGNAL CONDITIONER 2810913 (NEW OPEN BOX)

PHOENIX CONTACT

MCR-C-UI-UI-DCI

ORD.NO: 2810913

THE MCR-C-UI-UI(-450)-DCI(-NC) 3-WAY SIGNAL CONDITIONER IS USED TO ELECTRICALLY ISOLATE AND CONVERT ANALOG SIGNALS. IT ENSURES THE ELECTRICAL ISOLATION OF STANDARD ANALOG SIGNALS. THE MODULE INPUT AND OUTPUT ARE ELECTRICALLY ISOLATED AND SUPPLIED BY THE MAINS VIA INTEGRATED DC/DC CONVERTERS (3-WAY ISOLATION).

A GREEN POWER LED INDICATES THE REQUIRED AUXILIARY ENERGY. IT IS THEREFORE CLEARLY VISIBLE WHETHER AUXILIARY ENERGY IS AVAILABLE. THE MCR MODULE ENSURES THE SAFE DECOUPLING OF A SENSOR CIRCUIT FROM THE EVALUATION CIRCUIT AND THEREFORE ALSO PREVENTS ANY MUTUAL INTERFERENCE BETWEEN MULTIPLE SENSOR CIRCUITS.

THE 3-WAY ISOLATION MEANS THAT THE MODULES CAN BE USED UNIVERSALLY, BOTH ON SITE OR IN THE VICINITY OF THE CONTROLLER FOR SIGNAL CONVERSION AND ELECTRICAL ISOLATION, AND ALONG THE TRANSMISSION PATH TO BRIDGE HIGH LOAD RESISTANCE VALUES. SIGNALS ARE CONVERTED BY MEANS OF AN INDUCTIVE TRANSMISSION METHOD. IN ADDITION, A FILTER CONNECTED DOWNSTREAM OF THE TRANSMITTER REDUCES POSSIBLE INTERFERENCE.

PRODUCT TYPE: SIGNAL CONDITIONER

NO. OF CHANNELS: 1

ALIGNMENT SPAN: ± 2 %

ALIGNMENT ZERO: ± 2 %

ELECTRICAL ISOLATION BETWEEN INPUT AND OUTPUT: YES

LIMIT FREQUENCY: (3 DB) 30 HZ

MAXIMUM POWER DISSIPATION FOR NOMINAL CONDITION: 900 MW

TEST VOLTAGE INPUT/OUTPUT: 1.5 KV AC (50 HZ, 60 S)

TEST VOLTAGE POWER SUPPLY/SIGNAL: 1 KV AC (50 HZ, 60 S)

PROTECTIVE CIRCUIT: TRANSIENT PROTECTION

STEP RESPONSE (10-90%): 11 MS

MAXIMUM TEMPERATURE COEFFICIENT: 0.0075 %/K

MAXIMUM TRANSMISSION ERROR: ≤ 0.1 % (OF FINAL VALUE)

SUPPLY:

SUPPLY VOLTAGE RANGE: 18 V DC ... 30 V DC

MAX. CURRENT CONSUMPTION: < 30 MA (WITHOUT LOAD)

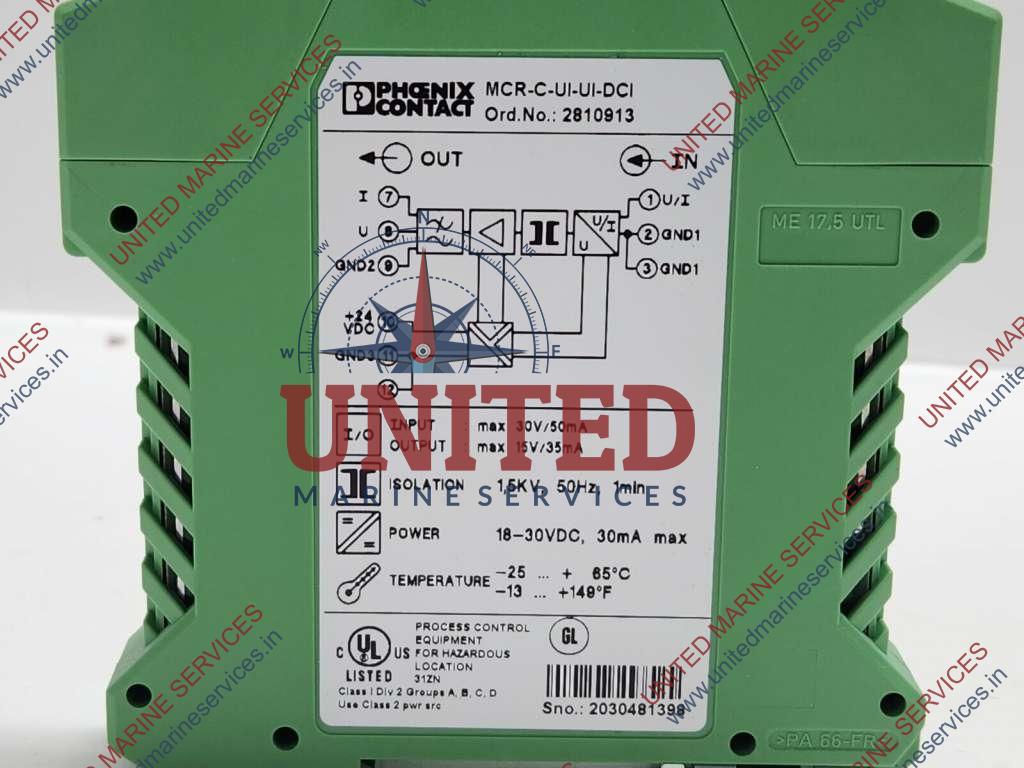

INPUT: MAX 30V/50 MA

OUTPUT: MAX 15V/35 MA

ISOLATION: 1,5KV, 50HZ, 1 MIN

POWER: 18-30V DC, 30MA MAX

TEMPERATURE: -25… + 65C; -13 …+ 149F

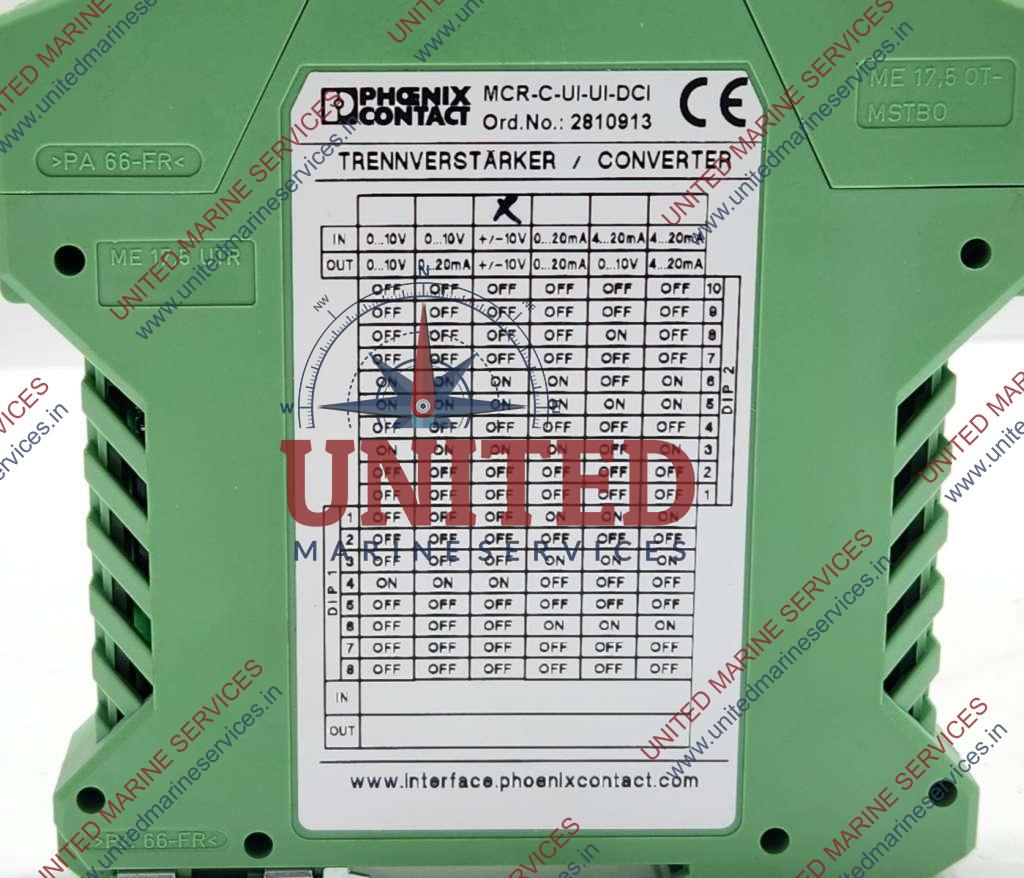

MCR 3-WAY SIGNAL CONDITIONER, WITH CONFIGURABLE INPUT/OUTPUT, FOR THE ELECTRICAL ISOLATION OF ANALOG SIGNALS, PRECONFIGURED. FOR INFORMATION ON PERMITTED SIGNAL COMBINATIONS, PLEASE REFER TO THE DATA SHEET. REPLACEMENT ITEM: 2811284 MACX MCR-UI-UI.

MADE IN GERMANY

REF.NO: FKM093
